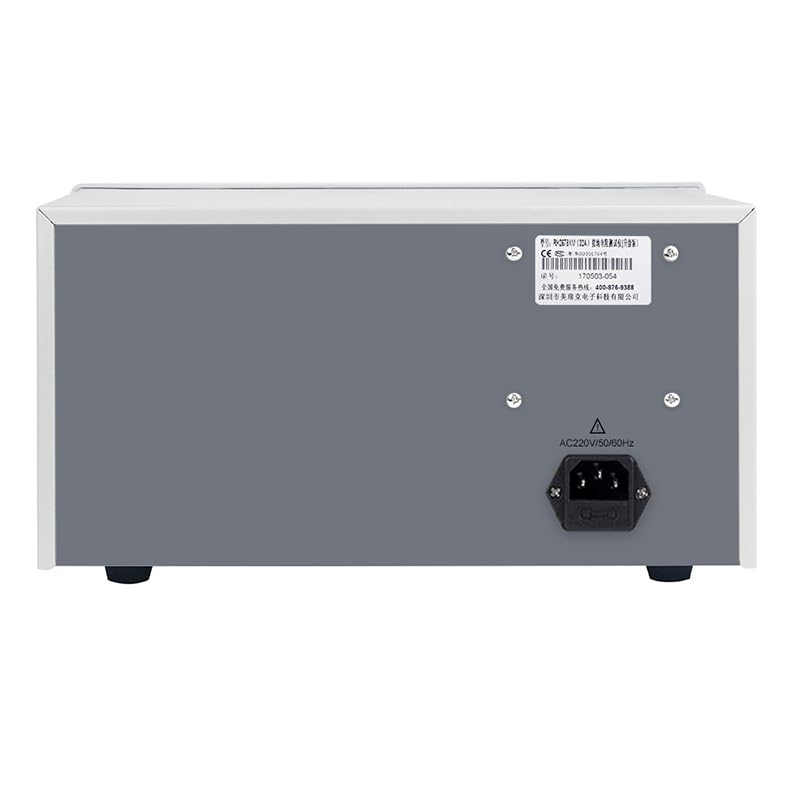

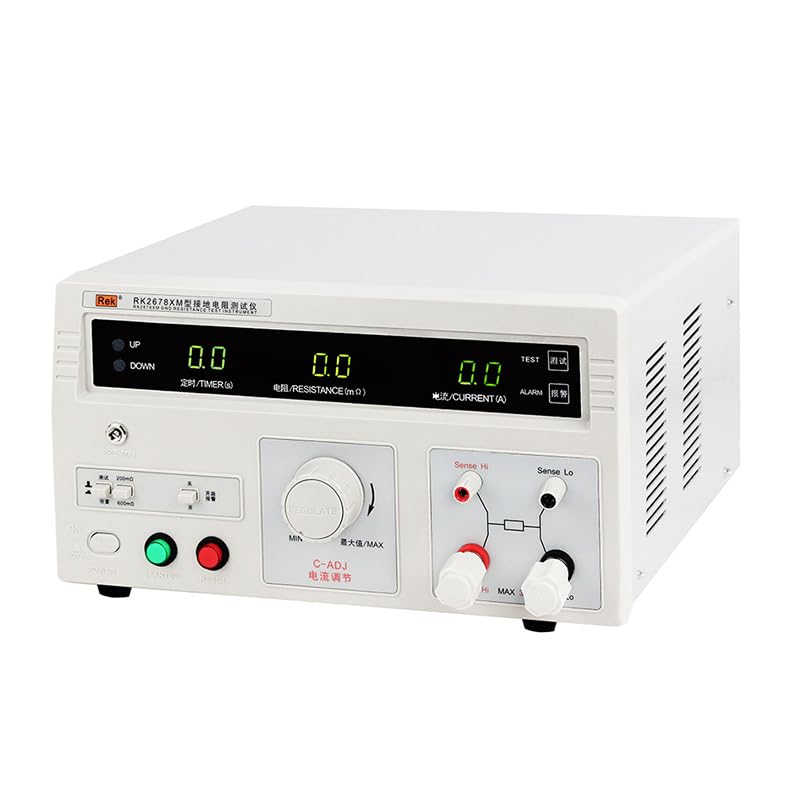

RK2678XM (32A) Ground Resistance Tester, Current 0-32A, Resistance Range 10~600mΩ, Accuracy 5%

The RK2678XM ground resistance tester is used to measure the ground resistance inside the electrical equipment, which reflects the (contact) resistance between the total ground terminals of the electrical equipment.It is suitable for measuring the resistance value between the shell and the ground of all kinds of motors, electrical appliances, instruments, household appliances and other equipment.

• Output current:5~32A;Test resistance:10.0~200mΩ 32A,200~600mΩ 10A;Test accuracy:±5%;Test time:0.0s~999s 0.0= Continuous test;Power requirements:220V±10% 50Hz±5%;Working environment:0℃~40℃ ≤85%RH;Attachment:Test cable, power cable
• The test time can be set arbitrarily;the test resistance, current, time are digital display,the minimum time resolution is 0.1s
• The test alarm value can be set continuously, unqualified sound and light alarm
• Overcurrent protection, easy operation, high reliability
• The four-end measurement method can eliminate the impact of contact resistance on the measurement results ,Optional PLC interface
