Fischer 522721 Long Shaft Dowel SXRL, zinc, 10x120
Product details
| Management number | 209375402 | Release Date | 2026/03/29 | List Price | $38.84 | Model Number | 209375402 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

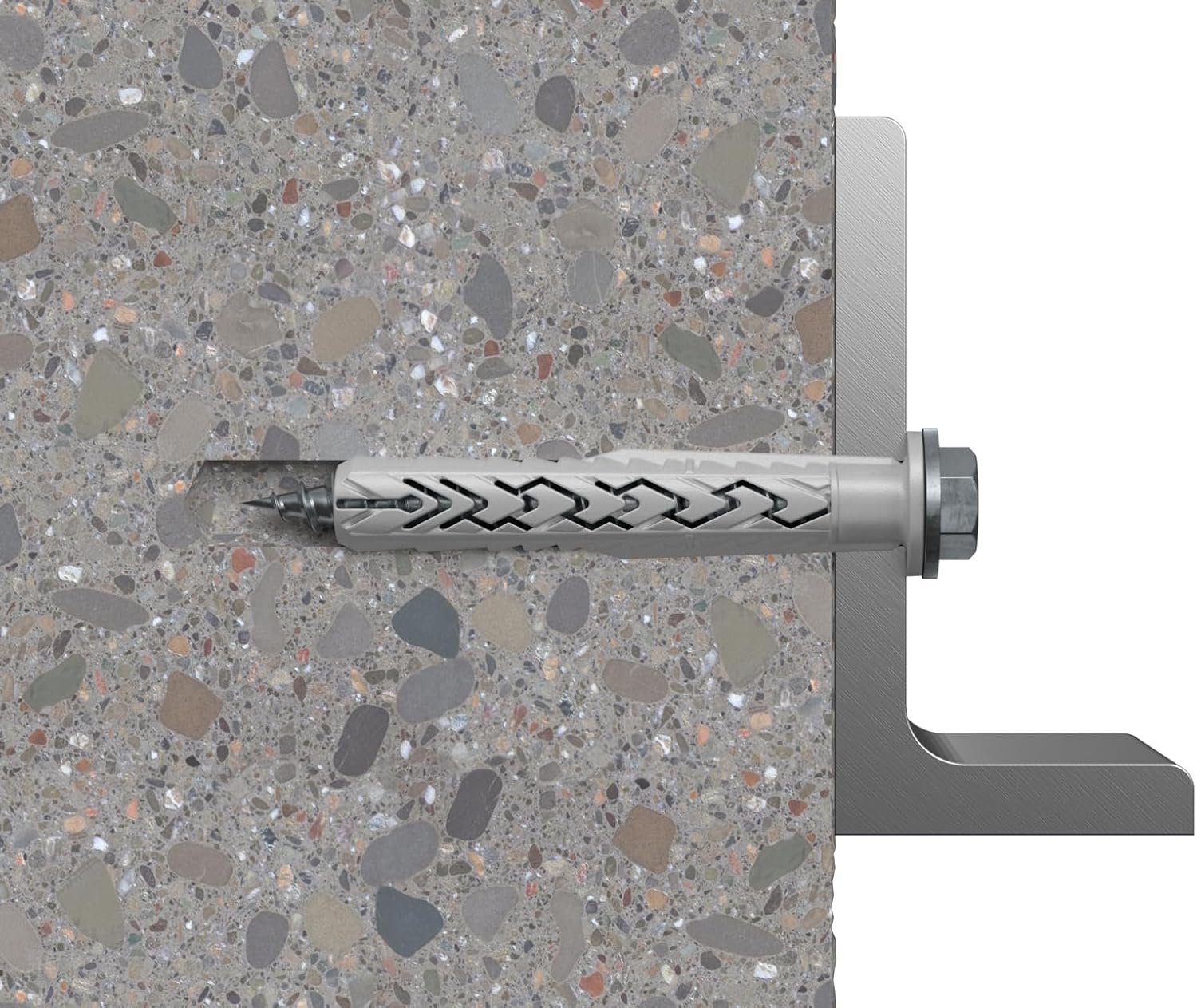

The fischer frame fixing SXR-FUS is a frame fixing made of high-quality nylon along with the pre-mounted fischer hexagonal screw and moulded washer. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-FUS is particularly recommended with the hexagonal screw and moulded washer for fixing metal constructions.
- Low anchorage depth saves time and costs
- Knotting in hollow building materials
- ETA approval in concrete and masonry
- ETA-12 certification: secure multiple attachments from not carrying systems in concrete and masonry
- Maximum Power In porous concrete and fully fits: the two expansion zones combine to create this long expansion element
- Halte personnel are implemented thanks the plug's geometry continuously into fabric, this allows you to in thin-walled building materials Stege ecology
- Easy to install: ridges prevent when deep give your within soon during bored
| Brand | fischer |
|---|---|
| Color | Zinc |
| Model | 522721 |
| Head Type | Hex |
| Size Name | 10x120 |
| Metal Type | Alloy Steel |
| Unit Count | 50.0 Count |
| Part Number | 522721 |
| Thread Size | 10x120 |
| Thread Type | Unc |
| Drive System | External Hex |
| Finish Types | Metallic |
| Grade Rating | Class 10.9 |
| Manufacturer | Fischer |
| Thread Class | 3B |
| Thread Style | Right Hand |
| Fastener Size | 10x120 |
| Fastener Type | Hexagon Bolt |
| Item Diameter | 10 Millimeters |
| Item Hardness | Grade 5 |
| Material Type | Alloy Steel |
| Item Type Name | SXRL |
| Exterior Finish | Zinc |
| Item Dimensions | 2.36 x 0.39 x 0.39 inches |
| Thread Coverage | Fully Threaded |
| Number of Pieces | 1 |
| Screw Head Style | Hex |
| Manufacturer Grade | Grade 5 |
| Included Components | 1 x Frame fixing 50 pieces |
| Set Screw Thread Type | metric |
| Compatible Groove Diameter | 1E+1 Millimeters |
| Global Trade Identification Number | 04048962180961 |
