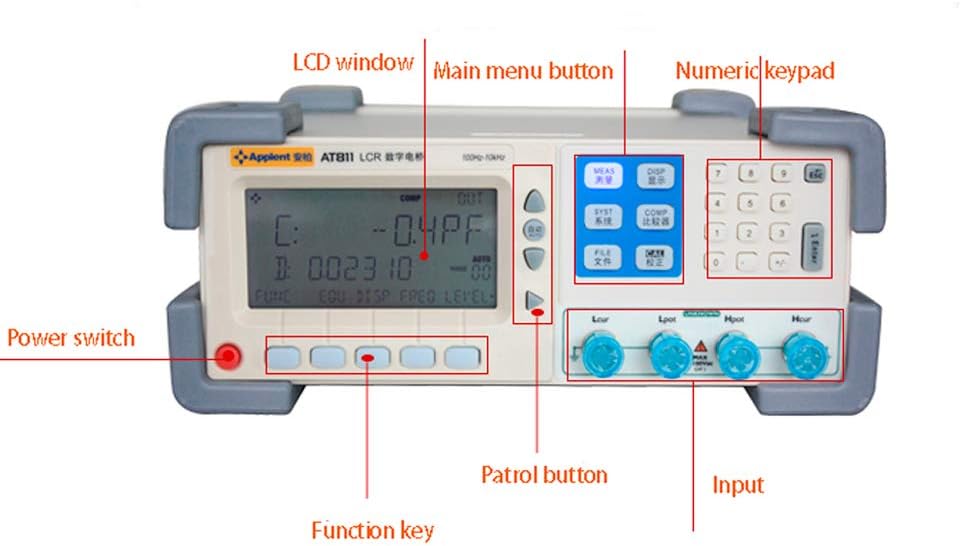

AT811 Digital LCR Meter Precision Digital LCR Bridge Accuracy 0.2% 100Hz 120Hz 1kHz 10kHz
Product details
| Management number | 210911295 | Release Date | 2026/04/04 | List Price | $199.60 | Model Number | 210911295 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

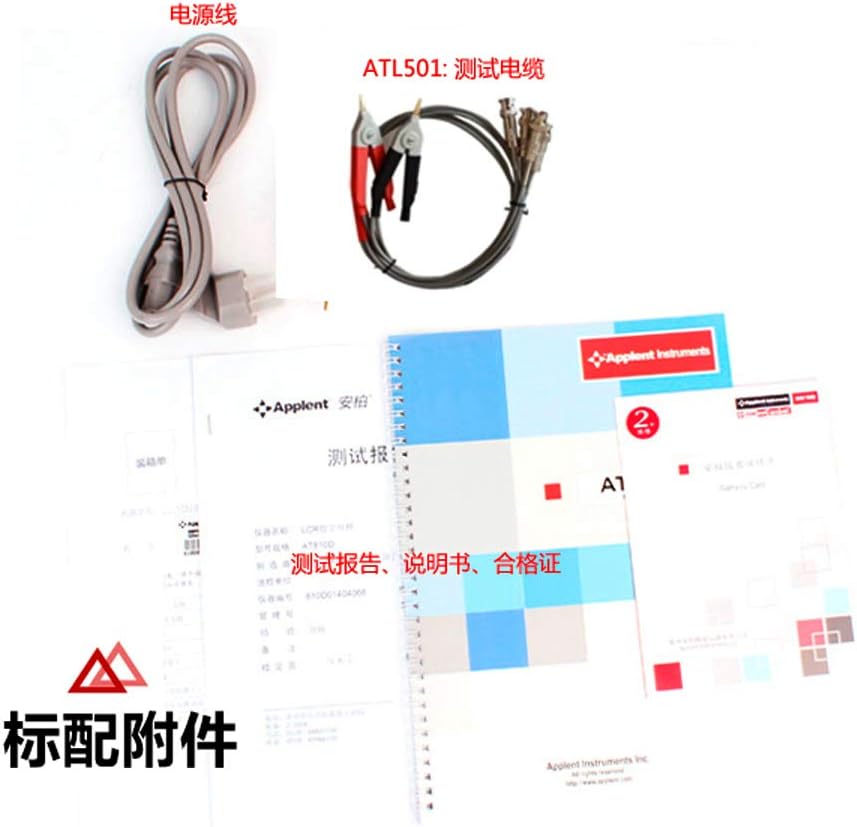

FeatureThe AT811 can be used for quality control on production line, incoming inspection of components and automatic test system.SpecificationParameters：L,C,R,|Z|,D,QMonitor Parameters：D,QAccuracy：0.20%Frequency：100Hz, 120Hz, 1kHz, 10kHzDisplay Range：L: 0.01μH(10kHz)-9999H C: 0.01pF(10kHz) - 9999μF R,Z: 0.0001Ω - 99.99MΩ Q: 0.0001 - 9999 Δ%:-9999% - 9999% D:0.0001 ～ 9.9999Source Resistance：30Ω 100ΩRange：Automatic and manual with 6 rangesDisplay Max：principle parameter: 99999; sub parameter: 99999Signal Level：0.3Vrms 1VrmsSpeed：2 times/second, 5 times/secondComparator：5-bin sorting, beep indicationAdjustment：Open and short sweep frequency resetInterface：Optional RS232C (SCPI programmable language)LCD Display, button light indication and soft key controlVoltage: 85V AC - 260V AC Frequency: 50Hz Power: Max 10VA216mm(Width)x88mm(Height)x300mm(Depth) 3kgATL501: Test cable
- Correction: OPEN and SHORT
- Comparator Function: P1,P2,P3,NG,AUX
- LCD Display
- Beep Alarm
- 1000V DC Super-impact protection
| UPC | 783761046936 |
|---|---|
| Color | Gray |
| Brand Name | Tongbao |
| Style Name | Digital |
| Manufacturer | Tongbao |
| Measurement Type | LCR Meter |
| Specification Met | Beep |
